💬 🤖 Asking questions to your database with LLMs

Nahuel Defossé nahuel.defosse@ibm.com
IBM Research Africa

About myself

🐍 Pythonista with 18 years of experience 🇦🇷 🧉
- Co-organized SciPy Latin America
- PyCon Argentina and EuroPython speaker
🚜 Worked as CTO in Hello Tractor
🧪 Software Engineer at IBM Research
🛰️ Worked in Foundational Models for Geospatial applications
💬 Currently working on Flowpilot , providing core features to different products and divisions

Tomorrow

Learn about Multimodal Geospatial Foundation Models with Terratorch by Wanjiru, Beldine and Reggie

Follow along (or at 🏡)

Get the slides

Get the code

https://github.com/D3f0/pycon-sql-llm

Agenda

In this talk we’re gonna show how to use Python to:

Connect to a database and execute the queries
Convert natural language questions into SQL

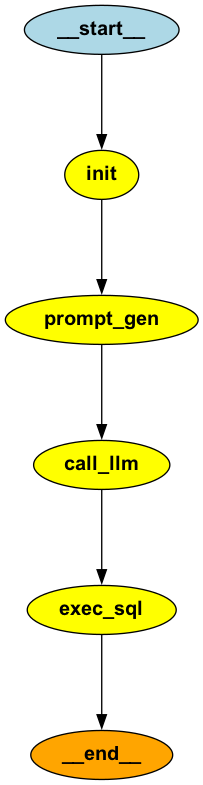

Create a workflow
Managing configuration
Lessons learned

Pipeline Overview

DB Inspection

Public datasets used in text to SQL

These datasets define:

❓ Natural language questions
🤞🏽 Expected SQL
🏗️ Database schema & content
🔎 Evaluation metrics
🥇 Leaderboard

🕷️ Spider

🕷️ 🕷️ Spider 2

🐦 BIRD

🏹 Archer

BIRD

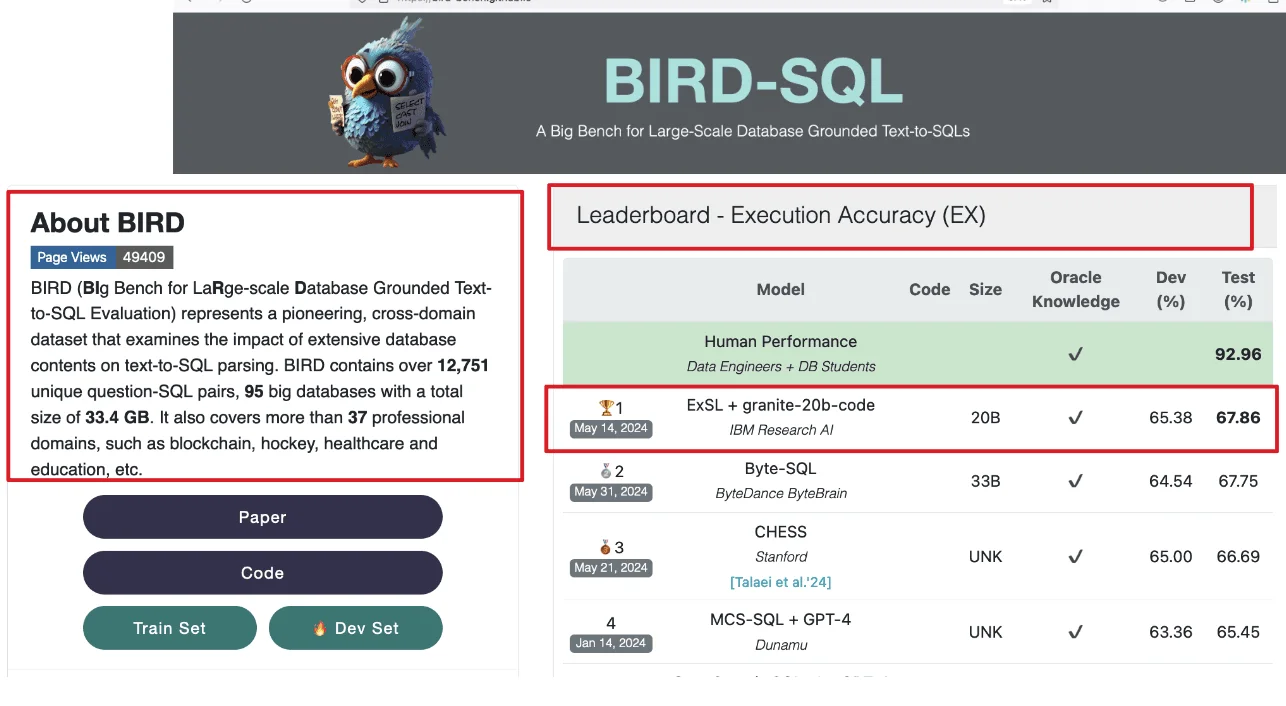

IBM Research in the leaderboard last year

BIRD mini-dev

It consist of 500 queries classified as simple, moderate and challenging

from datasets import load_dataset, DownloadConfig

# Load the dataset
dataset = load_dataset(
  "birdsql/bird_mini_dev",
  download_config=DownloadConfig(disable_tqdm=True)
)

# Only SQLite (there's Postgres and MySQL in the same dataset)
sqlite_df = (dataset["mini_dev_sqlite"]
  .to_pandas()
  .pipe(lambda df: df.drop(columns=['question_id'])))
display(sqlite_df.sample(5, random_state=17))

	db_id	question	evidence	SQL	difficulty
190	formula_1	For the constructor which got the highest poin...	race number refers to raceId; constructor whic...	SELECT T2.url FROM constructorResults AS T1 IN...	moderate
267	superhero	In superheroes with height between 150 to 180,...	height between 150 to 180 refers to height_cm ...	SELECT CAST(COUNT(CASE WHEN T2.publisher_name ...	challenging
457	california_schools	What is the monthly average number of schools ...	Elementary School District refers to DOC = 52;...	SELECT CAST(COUNT(School) AS REAL) / 12 FROM s...	moderate
263	superhero	What is the average weight of all female super...	female refers to gender = 'Female'; average we...	SELECT AVG(T1.weight_kg) FROM superhero AS T1 ...	simple
159	european_football_2	When was the first time did Kevin Constant hav...	Kevin Constant refers to player_name = 'Kevin ...	SELECT `date` FROM ( SELECT t2.crossing, t2.`d...	moderate

Downloading BIRD databases

uvx gdown https://drive.google.com/file/d/13VLWIwpw5E3d5DUkMvzw7hvHE67a4XkG/

Extracting the archive (3.3GiB)

unzip minidev_703.zip

Picking the example database `california_schools`

In minidev/MINIDEV/dev_databases/california_schools/ we find the

from pathlib import Path
base = Path('./minidev/MINIDEV/dev_databases/california_schools/')

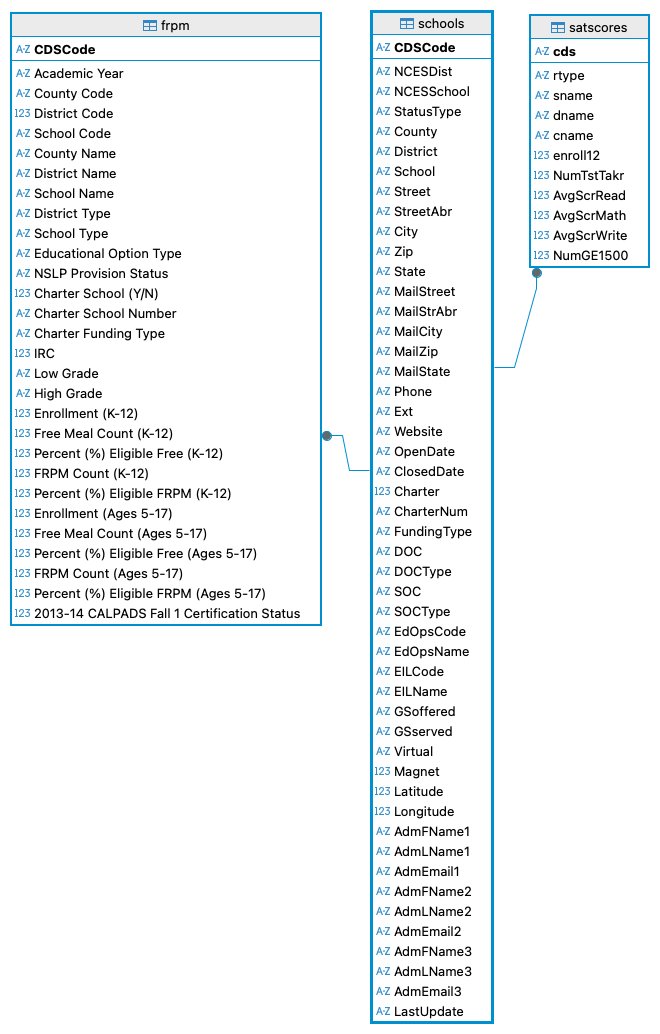

ER of `california_schools`

Creating the `Engine`

Creating an Engine instance connected to a SQLite database to run our queries.

from sqlalchemy import create_engine
db_path = base / 'california_schools.sqlite'
db_url = f"sqlite:///{db_path}"
engine = create_engine(db_url)
engine

Engine(sqlite:///minidev/MINIDEV/dev_databases/california_schools/california_schools.sqlite)

Getting one simple question

simple_queries_df = (sqlite_df
  .pipe(lambda df: df[df.db_id == 'california_schools'])
  .pipe(lambda df: df[df.difficulty == 'simple']))

simple_queries_df.head(2).set_index("db_id")

	question	evidence	SQL	difficulty
db_id
california_schools	How many schools with an average score in Math...	Exclusively virtual refers to Virtual = 'F'	SELECT COUNT(DISTINCT T2.School) FROM satscore...	simple
california_schools	Please list the codes of the schools with a to...	Total enrollment can be represented by `Enroll...	SELECT T2.CDSCode FROM schools AS T1 INNER JOI...	simple

Getting a `simple` question and query

question_sql_df = (simple_queries_df
  .pipe(lambda df: df[["question", "SQL"]])
  .reset_index())

Let’s take a look at the question and SQL column

question, query = question_sql_df.loc[
  0,
  ["question", "SQL"]]
display(question, query)

'How many schools with an average score in Math greater than 400 in the SAT test are exclusively virtual?'

"SELECT COUNT(DISTINCT T2.School) FROM satscores AS T1 INNER JOIN schools AS T2 ON T1.cds = T2.CDSCode WHERE T2.Virtual = 'F' AND T1.AvgScrMath > 400"

Execute the query

Now we run the SQL column captured in the variable query through SQLAlchemy and plot the results as a DataFrame

from sqlalchemy import text
with engine.connect() as conn:
    result = conn.execute(text(query))
    res_df = pd.DataFrame(result.fetchall()) # 🐼 ✨
    display(res_df)

	COUNT(DISTINCT T2.School)
0	4

Convert natural language questions into SQL

Coding models

Pretrained LLMs are quite capable of writing functional SQL queries, finetuned ones show better performance for specific SQL dialects.

For example, some IBM trained models include:

granite-3-2-8b-instruct
granite-34b-code-instruct
granite-20b-code-base-sql-gen

More info on these models | And also in 🤗

Prompts for SQL generation

LLMs don’t know the 🏗️ structure of our database, and may hallucinate about it, or create some flat out invalid SQL

We have to provide extra information about the structure in the instructions

For this we will use a prompt string with some placeholders .

Some research papers from our team on Robust LLMs:

Weakly Supervised Detection of Hallucinations in LLMs

Localizing Persona Representations In LLMs

Getting the schema for the prompt

LangChain (🦜 ⛓️) community 🐍 📦 provides a simple class that can retrieve some schema information SQL Question Answering

It implements the best practices as specified in: Rajkumar et al, 2022

!uv pip install langchain-community

Audited 1 package in 38ms

from langchain_community.utilities import SQLDatabase
db = SQLDatabase(engine=engine)

display(db.get_usable_table_names())

['frpm', 'satscores', 'schools']

print(db.get_table_info())

CREATE TABLE frpm (
        "CDSCode" TEXT NOT NULL,
        "Academic Year" TEXT,
        "County Code" TEXT,
        "District Code" INTEGER,
        "School Code" TEXT,
        "County Name" TEXT,
        "District Name" TEXT,
        "School Name" TEXT,
        "District Type" TEXT,
        "School Type" TEXT,
        "Educational Option Type" TEXT,
        "NSLP Provision Status" TEXT,
        "Charter School (Y/N)" INTEGER,
        "Charter School Number" TEXT,
        "Charter Funding Type" TEXT,
        "IRC" INTEGER,
        "Low Grade" TEXT,
        "High Grade" TEXT,
        "Enrollment (K-12)" REAL,
        "Free Meal Count (K-12)" REAL,
        "Percent (%) Eligible Free (K-12)"
REAL,
        "FRPM Count (K-12)" REAL,
        "Percent (%) Eligible FRPM (K-12)"
REAL,
        "Enrollment (Ages 5-17)" REAL,
        "Free Meal Count (Ages 5-17)" REAL,
        "Percent (%) Eligible Free (Ages
5-17)" REAL,
        "FRPM Count (Ages 5-17)" REAL,
        "Percent (%) Eligible FRPM (Ages
5-17)" REAL,
        "2013-14 CALPADS Fall 1 Certification
Status" INTEGER,
        PRIMARY KEY ("CDSCode"),
        FOREIGN KEY("CDSCode") REFERENCES
schools ("CDSCode")
)

/*
3 rows from frpm table:
CDSCode Academic Year   County Code
District Code   School Code     County Name
District Name   School Name     District Type
School Type     Educational Option Type NSLP
Provision Status   Charter School (Y/N)
Charter School Number   Charter Funding Type
IRC     Low Grade       High Grade
Enrollment (K-12)       Free Meal Count
(K-12)  Percent (%) Eligible Free (K-12)
FRPM Count (K-12)       Percent (%) Eligible
FRPM (K-12)        Enrollment (Ages 5-17)
Free Meal Count (Ages 5-17)     Percent (%)
Eligible Free (Ages 5-17)   FRPM Count (Ages
5-17)  Percent (%) Eligible FRPM (Ages 5-17)
2013-14 CALPADS Fall 1 Certification Status
01100170109835  2014-2015       01      10017
0109835 Alameda Alameda County Office of
Education      FAME Public Charter     County
Office of Education (COE)        K-12 Schools
(Public)   Traditional     None    1
0728    Directly funded 1       K       12
1087.0  565.0   0.519779208831647       715.0
0.657773689052438       1070.0  553.0
0.516822429906542       702.0
0.65607476635514        1
01100170112607  2014-2015       01      10017
0112607 Alameda Alameda County Office of
Education      Envision Academy for Arts &
Technology  County Office of Education (COE)
High Schools (Public)   Traditional     None
1       0811    Directly funded 1       9
12      395.0   186.0   0.470886075949367
186.0   0.470886075949367       376.0   182.0
0.484042553191489       182.0
0.484042553191489       1
01100170118489  2014-2015       01      10017
0118489 Alameda Alameda County Office of
Education      Aspire California College
Preparatory Academy   County Office of
Education (COE)        High Schools (Public)
Traditional     None    1       1049
Directly funded 1       9       12      244.0
134.0   0.549180327868853       175.0
0.717213114754098       230.0   128.0
0.556521739130435       168.0
0.730434782608696       1
*/


CREATE TABLE satscores (
        cds TEXT NOT NULL,
        rtype TEXT NOT NULL,
        sname TEXT,
        dname TEXT,
        cname TEXT,
        enroll12 INTEGER NOT NULL,
        "NumTstTakr" INTEGER NOT NULL,
        "AvgScrRead" INTEGER,
        "AvgScrMath" INTEGER,
        "AvgScrWrite" INTEGER,
        "NumGE1500" INTEGER,
        PRIMARY KEY (cds),
        FOREIGN KEY(cds) REFERENCES schools
("CDSCode")
)

/*
3 rows from satscores table:
cds     rtype   sname   dname   cname
enroll12        NumTstTakr      AvgScrRead
AvgScrMath      AvgScrWrite     NumGE1500
01100170000000  D       None    Alameda
County Office of Education      Alameda 398
88      418     418     417     14
01100170109835  S       FAME Public Charter
Alameda County Office of Education
Alameda 62      17      503     546     505
9
01100170112607  S       Envision Academy for
Arts & Technology  Alameda County Office of
Education      Alameda 75      71      397
387     395     5
*/


CREATE TABLE schools (
        "CDSCode" TEXT NOT NULL,
        "NCESDist" TEXT,
        "NCESSchool" TEXT,
        "StatusType" TEXT NOT NULL,
        "County" TEXT NOT NULL,
        "District" TEXT NOT NULL,
        "School" TEXT,
        "Street" TEXT,
        "StreetAbr" TEXT,
        "City" TEXT,
        "Zip" TEXT,
        "State" TEXT,
        "MailStreet" TEXT,
        "MailStrAbr" TEXT,
        "MailCity" TEXT,
        "MailZip" TEXT,
        "MailState" TEXT,
        "Phone" TEXT,
        "Ext" TEXT,
        "Website" TEXT,
        "OpenDate" DATE,
        "ClosedDate" DATE,
        "Charter" INTEGER,
        "CharterNum" TEXT,
        "FundingType" TEXT,
        "DOC" TEXT NOT NULL,
        "DOCType" TEXT NOT NULL,
        "SOC" TEXT,
        "SOCType" TEXT,
        "EdOpsCode" TEXT,
        "EdOpsName" TEXT,
        "EILCode" TEXT,
        "EILName" TEXT,
        "GSoffered" TEXT,
        "GSserved" TEXT,
        "Virtual" TEXT,
        "Magnet" INTEGER,
        "Latitude" REAL,
        "Longitude" REAL,
        "AdmFName1" TEXT,
        "AdmLName1" TEXT,
        "AdmEmail1" TEXT,
        "AdmFName2" TEXT,
        "AdmLName2" TEXT,
        "AdmEmail2" TEXT,
        "AdmFName3" TEXT,
        "AdmLName3" TEXT,
        "AdmEmail3" TEXT,
        "LastUpdate" DATE NOT NULL,
        PRIMARY KEY ("CDSCode")
)

/*
3 rows from schools table:
CDSCode NCESDist        NCESSchool
StatusType      County  District
School  Street  StreetAbr       City    Zip
State   MailStreet      MailStrAbr
MailCity        MailZip MailState       Phone
Ext     Website OpenDate        ClosedDate
Charter CharterNum      FundingType     DOC
DOCType SOC     SOCType EdOpsCode
EdOpsName       EILCode EILName GSoffered
GSserved        Virtual Magnet  Latitude
Longitude       AdmFName1       AdmLName1
AdmEmail1       AdmFName2       AdmLName2
AdmEmail2       AdmFName3       AdmLName3
AdmEmail3       LastUpdate
01100170000000  0691051 None    Active
Alameda Alameda County Office of Education
None    313 West Winton Avenue  313 West
Winton Ave.    Hayward 94544-1136      CA
313 West Winton Avenue  313 West Winton Ave.
Hayward 94544-1136      CA      (510)
887-0152  None    www.acoe.org    None
None    None    None    None    00
County Office of Education (COE)        None
None    None    None    None    None    None
None    None    None    37.658212
-122.09713      L Karen Monroe
lkmonroe@acoe.org       None    None    None
None    None    None    2015-06-23
01100170109835  0691051 10546   Closed
Alameda Alameda County Office of Education
FAME Public Charter     39899 Balentine
Drive, Suite 335        39899 Balentine Dr.,
Ste. 335   Newark  94560-5359      CA
39899 Balentine Drive, Suite 335        39899
Balentine Dr., Ste. 335   Newark  94560-5359
CA      None    None    None    2005-08-29
2015-07-31      1       0728    Directly
funded 00      County Office of Education
(COE)        65      K-12 Schools (Public)
TRAD    Traditional     ELEMHIGH
Elementary-High Combination     K-12    K-12
P       0       37.521436       -121.99391
None    None    None    None    None    None
None    None    None    2015-09-01
01100170112607  0691051 10947   Active
Alameda Alameda County Office of Education
Envision Academy for Arts & Technology  1515
Webster Street     1515 Webster St.
Oakland 94612-3355      CA      1515 Webster
Street     1515 Webster St.        Oakland
94612   CA      (510) 596-8901  None
www.envisionacademy.org/        2006-08-28
None    1       0811    Directly funded 00
County Office of Education (COE)        66
High Schools (Public)   TRAD    Traditional
HS      High School     9-12    9-12    N
0       37.80452        -122.26815      Laura
Robell  laura@envisionacademy.org       None
None    None    None    None    None
2015-06-18
*/

Prompts

system_message = """
Given an input question, create a syntactically correct {dialect} query to
run to help find the answer. Unless the user specifies in his question a
specific number of examples they wish to obtain, always limit your query to
at most {top_k} results. You can order the results by a relevant column to
return the most interesting examples in the database.

Never query for all the columns from a specific table, only ask for a the
few relevant columns given the question.

Pay attention to use only the column names that you can see in the schema
description. Be careful to not query for columns that do not exist. Also,
pay attention to which column is in which table.

Only use the following tables:
{table_info}
"""

source

The messages that constitute the prompt

Now we construct a list of messages. These are dicts which have a key user or system, and a content.

def generate_messages(question, dialect="SQL", top_k=5, table_info=""):
    # Create a ChatPromptTemplate
    messages = [
      {
        "role": "system",
        "content": system_message.format(
          dialect=dialect,
          top_k=top_k,
          table_info=table_info
        )},
      {
        "role": "user",
        "content": question
      }
    ]

    return messages

messages = generate_messages(
  question=question,
  dialect=db.dialect, top_k=10,
  table_info=db.get_table_info())
messages

The messages that constitute the prompt

[{'role': 'system',
  'content': '\nGiven an input question, create a syntactically correct sqlite query to\nrun to help find the answer. Unless the user specifies in his question a\nspecific number of examples they wish to obtain, always limit your query to\nat most 10 results. You can order the results by a relevant column to\nreturn the most interesting examples in the database.\n\nNever query for all the columns from a specific table, only ask for a the\nfew relevant columns given the question.\n\nPay attention to use only the column names that you can see in the schema\ndescription. Be careful to not query for columns that do not exist. Also,\npay attention to which column is in which table.\n\nOnly use the following tables:\n\nCREATE TABLE frpm (\n\t"CDSCode" TEXT NOT NULL, \n\t"Academic Year" TEXT, \n\t"County Code" TEXT, \n\t"District Code" INTEGER, \n\t"School Code" TEXT, \n\t"County Name" TEXT, \n\t"District Name" TEXT, \n\t"School Name" TEXT, \n\t"District Type" TEXT, \n\t"School Type" TEXT, \n\t"Educational Option Type" TEXT, \n\t"NSLP Provision Status" TEXT, \n\t"Charter School (Y/N)" INTEGER, \n\t"Charter School Number" TEXT, \n\t"Charter Funding Type" TEXT, \n\t"IRC" INTEGER, \n\t"Low Grade" TEXT, \n\t"High Grade" TEXT, \n\t"Enrollment (K-12)" REAL, \n\t"Free Meal Count (K-12)" REAL, \n\t"Percent (%) Eligible Free (K-12)" REAL, \n\t"FRPM Count (K-12)" REAL, \n\t"Percent (%) Eligible FRPM (K-12)" REAL, \n\t"Enrollment (Ages 5-17)" REAL, \n\t"Free Meal Count (Ages 5-17)" REAL, \n\t"Percent (%) Eligible Free (Ages 5-17)" REAL, \n\t"FRPM Count (Ages 5-17)" REAL, \n\t"Percent (%) Eligible FRPM (Ages 5-17)" REAL, \n\t"2013-14 CALPADS Fall 1 Certification Status" INTEGER, \n\tPRIMARY KEY ("CDSCode"), \n\tFOREIGN KEY("CDSCode") REFERENCES schools ("CDSCode")\n)\n\n/*\n3 rows from frpm table:\nCDSCode\tAcademic Year\tCounty Code\tDistrict Code\tSchool Code\tCounty Name\tDistrict Name\tSchool Name\tDistrict Type\tSchool Type\tEducational Option Type\tNSLP Provision Status\tCharter School (Y/N)\tCharter School Number\tCharter Funding Type\tIRC\tLow Grade\tHigh Grade\tEnrollment (K-12)\tFree Meal Count (K-12)\tPercent (%) Eligible Free (K-12)\tFRPM Count (K-12)\tPercent (%) Eligible FRPM (K-12)\tEnrollment (Ages 5-17)\tFree Meal Count (Ages 5-17)\tPercent (%) Eligible Free (Ages 5-17)\tFRPM Count (Ages 5-17)\tPercent (%) Eligible FRPM (Ages 5-17)\t2013-14 CALPADS Fall 1 Certification Status\n01100170109835\t2014-2015\t01\t10017\t0109835\tAlameda\tAlameda County Office of Education\tFAME Public Charter\tCounty Office of Education (COE)\tK-12 Schools (Public)\tTraditional\tNone\t1\t0728\tDirectly funded\t1\tK\t12\t1087.0\t565.0\t0.519779208831647\t715.0\t0.657773689052438\t1070.0\t553.0\t0.516822429906542\t702.0\t0.65607476635514\t1\n01100170112607\t2014-2015\t01\t10017\t0112607\tAlameda\tAlameda County Office of Education\tEnvision Academy for Arts & Technology\tCounty Office of Education (COE)\tHigh Schools (Public)\tTraditional\tNone\t1\t0811\tDirectly funded\t1\t9\t12\t395.0\t186.0\t0.470886075949367\t186.0\t0.470886075949367\t376.0\t182.0\t0.484042553191489\t182.0\t0.484042553191489\t1\n01100170118489\t2014-2015\t01\t10017\t0118489\tAlameda\tAlameda County Office of Education\tAspire California College Preparatory Academy\tCounty Office of Education (COE)\tHigh Schools (Public)\tTraditional\tNone\t1\t1049\tDirectly funded\t1\t9\t12\t244.0\t134.0\t0.549180327868853\t175.0\t0.717213114754098\t230.0\t128.0\t0.556521739130435\t168.0\t0.730434782608696\t1\n*/\n\n\nCREATE TABLE satscores (\n\tcds TEXT NOT NULL, \n\trtype TEXT NOT NULL, \n\tsname TEXT, \n\tdname TEXT, \n\tcname TEXT, \n\tenroll12 INTEGER NOT NULL, \n\t"NumTstTakr" INTEGER NOT NULL, \n\t"AvgScrRead" INTEGER, \n\t"AvgScrMath" INTEGER, \n\t"AvgScrWrite" INTEGER, \n\t"NumGE1500" INTEGER, \n\tPRIMARY KEY (cds), \n\tFOREIGN KEY(cds) REFERENCES schools ("CDSCode")\n)\n\n/*\n3 rows from satscores table:\ncds\trtype\tsname\tdname\tcname\tenroll12\tNumTstTakr\tAvgScrRead\tAvgScrMath\tAvgScrWrite\tNumGE1500\n01100170000000\tD\tNone\tAlameda County Office of Education\tAlameda\t398\t88\t418\t418\t417\t14\n01100170109835\tS\tFAME Public Charter\tAlameda County Office of Education\tAlameda\t62\t17\t503\t546\t505\t9\n01100170112607\tS\tEnvision Academy for Arts & Technology\tAlameda County Office of Education\tAlameda\t75\t71\t397\t387\t395\t5\n*/\n\n\nCREATE TABLE schools (\n\t"CDSCode" TEXT NOT NULL, \n\t"NCESDist" TEXT, \n\t"NCESSchool" TEXT, \n\t"StatusType" TEXT NOT NULL, \n\t"County" TEXT NOT NULL, \n\t"District" TEXT NOT NULL, \n\t"School" TEXT, \n\t"Street" TEXT, \n\t"StreetAbr" TEXT, \n\t"City" TEXT, \n\t"Zip" TEXT, \n\t"State" TEXT, \n\t"MailStreet" TEXT, \n\t"MailStrAbr" TEXT, \n\t"MailCity" TEXT, \n\t"MailZip" TEXT, \n\t"MailState" TEXT, \n\t"Phone" TEXT, \n\t"Ext" TEXT, \n\t"Website" TEXT, \n\t"OpenDate" DATE, \n\t"ClosedDate" DATE, \n\t"Charter" INTEGER, \n\t"CharterNum" TEXT, \n\t"FundingType" TEXT, \n\t"DOC" TEXT NOT NULL, \n\t"DOCType" TEXT NOT NULL, \n\t"SOC" TEXT, \n\t"SOCType" TEXT, \n\t"EdOpsCode" TEXT, \n\t"EdOpsName" TEXT, \n\t"EILCode" TEXT, \n\t"EILName" TEXT, \n\t"GSoffered" TEXT, \n\t"GSserved" TEXT, \n\t"Virtual" TEXT, \n\t"Magnet" INTEGER, \n\t"Latitude" REAL, \n\t"Longitude" REAL, \n\t"AdmFName1" TEXT, \n\t"AdmLName1" TEXT, \n\t"AdmEmail1" TEXT, \n\t"AdmFName2" TEXT, \n\t"AdmLName2" TEXT, \n\t"AdmEmail2" TEXT, \n\t"AdmFName3" TEXT, \n\t"AdmLName3" TEXT, \n\t"AdmEmail3" TEXT, \n\t"LastUpdate" DATE NOT NULL, \n\tPRIMARY KEY ("CDSCode")\n)\n\n/*\n3 rows from schools table:\nCDSCode\tNCESDist\tNCESSchool\tStatusType\tCounty\tDistrict\tSchool\tStreet\tStreetAbr\tCity\tZip\tState\tMailStreet\tMailStrAbr\tMailCity\tMailZip\tMailState\tPhone\tExt\tWebsite\tOpenDate\tClosedDate\tCharter\tCharterNum\tFundingType\tDOC\tDOCType\tSOC\tSOCType\tEdOpsCode\tEdOpsName\tEILCode\tEILName\tGSoffered\tGSserved\tVirtual\tMagnet\tLatitude\tLongitude\tAdmFName1\tAdmLName1\tAdmEmail1\tAdmFName2\tAdmLName2\tAdmEmail2\tAdmFName3\tAdmLName3\tAdmEmail3\tLastUpdate\n01100170000000\t0691051\tNone\tActive\tAlameda\tAlameda County Office of Education\tNone\t313 West Winton Avenue\t313 West Winton Ave.\tHayward\t94544-1136\tCA\t313 West Winton Avenue\t313 West Winton Ave.\tHayward\t94544-1136\tCA\t(510) 887-0152\tNone\twww.acoe.org\tNone\tNone\tNone\tNone\tNone\t00\tCounty Office of Education (COE)\tNone\tNone\tNone\tNone\tNone\tNone\tNone\tNone\tNone\tNone\t37.658212\t-122.09713\tL Karen\tMonroe\tlkmonroe@acoe.org\tNone\tNone\tNone\tNone\tNone\tNone\t2015-06-23\n01100170109835\t0691051\t10546\tClosed\tAlameda\tAlameda County Office of Education\tFAME Public Charter\t39899 Balentine Drive, Suite 335\t39899 Balentine Dr., Ste. 335\tNewark\t94560-5359\tCA\t39899 Balentine Drive, Suite 335\t39899 Balentine Dr., Ste. 335\tNewark\t94560-5359\tCA\tNone\tNone\tNone\t2005-08-29\t2015-07-31\t1\t0728\tDirectly funded\t00\tCounty Office of Education (COE)\t65\tK-12 Schools (Public)\tTRAD\tTraditional\tELEMHIGH\tElementary-High Combination\tK-12\tK-12\tP\t0\t37.521436\t-121.99391\tNone\tNone\tNone\tNone\tNone\tNone\tNone\tNone\tNone\t2015-09-01\n01100170112607\t0691051\t10947\tActive\tAlameda\tAlameda County Office of Education\tEnvision Academy for Arts & Technology\t1515 Webster Street\t1515 Webster St.\tOakland\t94612-3355\tCA\t1515 Webster Street\t1515 Webster St.\tOakland\t94612\tCA\t(510) 596-8901\tNone\twww.envisionacademy.org/\t2006-08-28\tNone\t1\t0811\tDirectly funded\t00\tCounty Office of Education (COE)\t66\tHigh Schools (Public)\tTRAD\tTraditional\tHS\tHigh School\t9-12\t9-12\tN\t0\t37.80452\t-122.26815\tLaura\tRobell\tlaura@envisionacademy.org\tNone\tNone\tNone\tNone\tNone\tNone\t2015-06-18\n*/\n'},
 {'role': 'user',
  'content': 'How many schools with an average score in Math greater than 400 in the SAT test are exclusively virtual?'}]

🔎 the `system` message

Given an input question, create a
syntactically correct sqlite query to
run to help find the answer. Unless the user
specifies in his question a
specific number of examples they wish to
obtain, always limit your query to
at most 10 results. You can order the results
by a relevant column to
return the most interesting examples in the
database.

Never query for all the columns from a
specific table, only ask for a the
few relevant columns given the question.

Pay attention to use only the column names
that you can see in the schema
description. Be careful to not query for
columns that do not exist. Also,
pay attention to which column is in which
table.

Only use the following tables:

CREATE TABLE frpm (
        "CDSCode" TEXT NOT NULL,
        "Academic Year" TEXT,
        "County Code" TEXT,
        "District Code" INTEGER,
        "School Code" TEXT,
        "County Name" TEXT,
        "District Name" TEXT,
        "School Name" TEXT,
        "District Type" TEXT,
        "School Type" TEXT,
        "Educational Option Type" TEXT,
        "NSLP Provision Status" TEXT,
        "Charter School (Y/N)" INTEGER,
        "Charter School Number" TEXT,
        "Charter Funding Type" TEXT,
        "IRC" INTEGER,
        "Low Grade" TEXT,
        "High Grade" TEXT,
        "Enrollment (K-12)" REAL,
        "Free Meal Count (K-12)" REAL,
        "Percent (%) Eligible Free (K-12)"
REAL,
        "FRPM Count (K-12)" REAL,
        "Percent (%) Eligible FRPM (K-12)"
REAL,
        "Enrollment (Ages 5-17)" REAL,
        "Free Meal Count (Ages 5-17)" REAL,
        "Percent (%) Eligible Free (Ages
5-17)" REAL,
        "FRPM Count (Ages 5-17)" REAL,
        "Percent (%) Eligible FRPM (Ages
5-17)" REAL,
        "2013-14 CALPADS Fall 1 Certification
Status" INTEGER,
        PRIMARY KEY ("CDSCode"),
        FOREIGN KEY("CDSCode") REFERENCES
schools ("CDSCode")
)

/*
3 rows from frpm table:
CDSCode Academic Year   County Code
District Code   School Code     County Name
District Name   School Name     District Type
School Type     Educational Option Type NSLP
Provision Status   Charter School (Y/N)
Charter School Number   Charter Funding Type
IRC     Low Grade       High Grade
Enrollment (K-12)       Free Meal Count
(K-12)  Percent (%) Eligible Free (K-12)
FRPM Count (K-12)       Percent (%) Eligible
FRPM (K-12)        Enrollment (Ages 5-17)
Free Meal Count (Ages 5-17)     Percent (%)
Eligible Free (Ages 5-17)   FRPM Count (Ages
5-17)  Percent (%) Eligible FRPM (Ages 5-17)
2013-14 CALPADS Fall 1 Certification Status
01100170109835  2014-2015       01      10017
0109835 Alameda Alameda County Office of
Education      FAME Public Charter     County
Office of Education (COE)        K-12 Schools
(Public)   Traditional     None    1
0728    Directly funded 1       K       12
1087.0  565.0   0.519779208831647       715.0
0.657773689052438       1070.0  553.0
0.516822429906542       702.0
0.65607476635514        1
01100170112607  2014-2015       01      10017
0112607 Alameda Alameda County Office of
Education      Envision Academy for Arts &
Technology  County Office of Education (COE)
High Schools (Public)   Traditional     None
1       0811    Directly funded 1       9
12      395.0   186.0   0.470886075949367
186.0   0.470886075949367       376.0   182.0
0.484042553191489       182.0
0.484042553191489       1
01100170118489  2014-2015       01      10017
0118489 Alameda Alameda County Office of
Education      Aspire California College
Preparatory Academy   County Office of
Education (COE)        High Schools (Public)
Traditional     None    1       1049
Directly funded 1       9       12      244.0
134.0   0.549180327868853       175.0
0.717213114754098       230.0   128.0
0.556521739130435       168.0
0.730434782608696       1
*/


CREATE TABLE satscores (
        cds TEXT NOT NULL,
        rtype TEXT NOT NULL,
        sname TEXT,
        dname TEXT,
        cname TEXT,
        enroll12 INTEGER NOT NULL,
        "NumTstTakr" INTEGER NOT NULL,
        "AvgScrRead" INTEGER,
        "AvgScrMath" INTEGER,
        "AvgScrWrite" INTEGER,
        "NumGE1500" INTEGER,
        PRIMARY KEY (cds),
        FOREIGN KEY(cds) REFERENCES schools
("CDSCode")
)

/*
3 rows from satscores table:
cds     rtype   sname   dname   cname
enroll12        NumTstTakr      AvgScrRead
AvgScrMath      AvgScrWrite     NumGE1500
01100170000000  D       None    Alameda
County Office of Education      Alameda 398
88      418     418     417     14
01100170109835  S       FAME Public Charter
Alameda County Office of Education
Alameda 62      17      503     546     505
9
01100170112607  S       Envision Academy for
Arts & Technology  Alameda County Office of
Education      Alameda 75      71      397
387     395     5
*/


CREATE TABLE schools (
        "CDSCode" TEXT NOT NULL,
        "NCESDist" TEXT,
        "NCESSchool" TEXT,
        "StatusType" TEXT NOT NULL,
        "County" TEXT NOT NULL,
        "District" TEXT NOT NULL,
        "School" TEXT,
        "Street" TEXT,
        "StreetAbr" TEXT,
        "City" TEXT,
        "Zip" TEXT,
        "State" TEXT,
        "MailStreet" TEXT,
        "MailStrAbr" TEXT,
        "MailCity" TEXT,
        "MailZip" TEXT,
        "MailState" TEXT,
        "Phone" TEXT,
        "Ext" TEXT,
        "Website" TEXT,
        "OpenDate" DATE,
        "ClosedDate" DATE,
        "Charter" INTEGER,
        "CharterNum" TEXT,
        "FundingType" TEXT,
        "DOC" TEXT NOT NULL,
        "DOCType" TEXT NOT NULL,
        "SOC" TEXT,
        "SOCType" TEXT,
        "EdOpsCode" TEXT,
        "EdOpsName" TEXT,
        "EILCode" TEXT,
        "EILName" TEXT,
        "GSoffered" TEXT,
        "GSserved" TEXT,
        "Virtual" TEXT,
        "Magnet" INTEGER,
        "Latitude" REAL,
        "Longitude" REAL,
        "AdmFName1" TEXT,
        "AdmLName1" TEXT,
        "AdmEmail1" TEXT,
        "AdmFName2" TEXT,
        "AdmLName2" TEXT,
        "AdmEmail2" TEXT,
        "AdmFName3" TEXT,
        "AdmLName3" TEXT,
        "AdmEmail3" TEXT,
        "LastUpdate" DATE NOT NULL,
        PRIMARY KEY ("CDSCode")
)

/*
3 rows from schools table:
CDSCode NCESDist        NCESSchool
StatusType      County  District
School  Street  StreetAbr       City    Zip
State   MailStreet      MailStrAbr
MailCity        MailZip MailState       Phone
Ext     Website OpenDate        ClosedDate
Charter CharterNum      FundingType     DOC
DOCType SOC     SOCType EdOpsCode
EdOpsName       EILCode EILName GSoffered
GSserved        Virtual Magnet  Latitude
Longitude       AdmFName1       AdmLName1
AdmEmail1       AdmFName2       AdmLName2
AdmEmail2       AdmFName3       AdmLName3
AdmEmail3       LastUpdate
01100170000000  0691051 None    Active
Alameda Alameda County Office of Education
None    313 West Winton Avenue  313 West
Winton Ave.    Hayward 94544-1136      CA
313 West Winton Avenue  313 West Winton Ave.
Hayward 94544-1136      CA      (510)
887-0152  None    www.acoe.org    None
None    None    None    None    00
County Office of Education (COE)        None
None    None    None    None    None    None
None    None    None    37.658212
-122.09713      L Karen Monroe
lkmonroe@acoe.org       None    None    None
None    None    None    2015-06-23
01100170109835  0691051 10546   Closed
Alameda Alameda County Office of Education
FAME Public Charter     39899 Balentine
Drive, Suite 335        39899 Balentine Dr.,
Ste. 335   Newark  94560-5359      CA
39899 Balentine Drive, Suite 335        39899
Balentine Dr., Ste. 335   Newark  94560-5359
CA      None    None    None    2005-08-29
2015-07-31      1       0728    Directly
funded 00      County Office of Education
(COE)        65      K-12 Schools (Public)
TRAD    Traditional     ELEMHIGH
Elementary-High Combination     K-12    K-12
P       0       37.521436       -121.99391
None    None    None    None    None    None
None    None    None    2015-09-01
01100170112607  0691051 10947   Active
Alameda Alameda County Office of Education
Envision Academy for Arts & Technology  1515
Webster Street     1515 Webster St.
Oakland 94612-3355      CA      1515 Webster
Street     1515 Webster St.        Oakland
94612   CA      (510) 596-8901  None
www.envisionacademy.org/        2006-08-28
None    1       0811    Directly funded 00
County Office of Education (COE)        66
High Schools (Public)   TRAD    Traditional
HS      High School     9-12    9-12    N
0       37.80452        -122.26815      Laura
Robell  laura@envisionacademy.org       None
None    None    None    None    None
2015-06-18
*/

Calling the LLM with the prompt

litellm is a Open Source Python library (and also a Proxy) that can be used to run inference and compute embeddings with a vast number of providers (new models added weekly).

Among the provider lists we have:

Ollama / LMStudio / llama.cpp
IBM WatsonX.ai
Anthropic
OpenAI
AWS Sagemaker
OpenRouter
and more

Using litellm

!uv add litellm --quiet

To run inference, we just call the completions function:

import litellm

# provider/model (if not local, ensure you have API 🔑 )
model = "watsonx/ibm/granite-3-2-8b-instruct"

response = litellm.completion(
  model=model,
  messages=messages,
)

print(response)

ModelResponse(
    id='chatcmpl-f79a3df0-2506-4e7e-aa2b-b65d
21f5d680---5976a0e7cf57f032504389f213b02431--
-e4f953c6-f9cd-4161-bccf-1f1fd819ea7b',
    created=1758486227,
    model='watsonx/ibm/granite-3-2-8b-instruc
t',
    object='chat.completion',
    system_fingerprint=None,
    choices=[
        Choices(
            finish_reason='stop',
            index=0,
            message=Message(
                content='SELECT COUNT(*) FROM
schools\nINNER JOIN frpm ON schools.CDSCode =
frpm.CDSCode\nINNER JOIN satscores ON
schools.CDSCode = satscores.cds\nWHERE
satscores."AvgScrMath" > 400\nAND
schools.Virtual = \'Y\'\nAND schools.Magnet =
0\nAND frpm.CharterSchool(Y/N) = 0\nLIMIT
10;',
                role='assistant',
                tool_calls=None,
                function_call=None,
                provider_specific_fields=None
            )
        )
    ],
    usage=Usage(
        completion_tokens=102,
        prompt_tokens=3259,
        total_tokens=3361,
        completion_tokens_details=None,
        prompt_tokens_details=None
    ),
    model_id='ibm/granite-3-2-8b-instruct',
    model_version='1.0.0',
    created_at='2025-09-21T20:23:48.449Z',
    system={
        'warnings': [
            {
                'message': "The value of
'max_completion_tokens' for this model was
set to value 1024",
                'id':
'unspecified_max_completion_tokens',
                'additional_properties': {
                    'limit': 0,
                    'new_value': 1024,
                    'parameter':
'max_completion_tokens',
                    'value': 0
                }
            }
        ]
    }
)

Structured output

LLM outputs are text, SQL for our use case.

It’s a good UX to give some explanation to the user about the LLM output. We will use JSON Schema output to have both output without any string manipulation ✨

from pydantic import BaseModel, Field
class SQLOutput(BaseModel):
    sql: str = Field(description="The SQL query")
    explanation: str = Field(
      description="The reasoning for the query construction")

# Optional
# litellm.enable_json_schema_validation = True

response = litellm.completion(
  model=model,
  messages=messages,
  response_format=SQLOutput,
)
output = SQLOutput.model_validate_json(
  response.choices[0].message.content)

This methods is known as grammar constraint decoding, not all models are capable of it.

Attributes of `output` object

output.sql

"SELECT COUNT(*) FROM schools INNER JOIN satscores ON schools.CDSCode = satscores.cds WHERE schools.Virtual = 'Y' AND satscores.AvgScrMath > 400;"

output.explanation

"The query selects the count of virtual schools from the 'schools' table that have a 'Virtual' column value of 'Y' and an 'AvgScrMath' (average score in Math) in the 'satscores' table greater than 400. It uses a JOIN to combine data from both tables based on the common 'CDSCode' column."

LLM generated SQL vs dataset query

display(query)
display(output.sql)

"SELECT COUNT(DISTINCT T2.School) FROM satscores AS T1 INNER JOIN schools AS T2 ON T1.cds = T2.CDSCode WHERE T2.Virtual = 'F' AND T1.AvgScrMath > 400"

"SELECT COUNT(*) FROM schools INNER JOIN satscores ON schools.CDSCode = satscores.cds WHERE schools.Virtual = 'Y' AND satscores.AvgScrMath > 400;"

Execution result:

[(0,)]

this should be a 4. The LLM didn’t know about the column value conventions of the database.

Running again with values

By modifying the prompt adding the relevant information from the CSVs that were in the same folder as california_schools.sqlite

  {extra_context}

  For the School table, consider this information for the Schools table

  · F = Exclusively Virtual – The school has no physical building where students meet with each other or with teachers, all instruction is virtual.

The result becomes…

{'sql': "SELECT COUNT(*) FROM satscores INNER JOIN schools
        ON satscores.cds = schools.CDSCode WHERE satscores.AvgScrMath > 400
        AND schools.Virtual = 'F'",
 'result': '[(4,)]'}

Create a workflow

Chaining generation and execution

LangGraph allows us to create state machines around LLM calls, using functions as nodes. The full can be checked out src/sql_with_llms/main.py

Memory (cache)
Human in the Loop support
Durable execution

Graph creation

graph_builder = StateGraph(
    input_schema=Input,
    state_schema=State,
    output_schema=Output,
)
graph_builder.add_node("init", init)

graph_builder.add_node("prompt_gen", with_config(prompt_gen))
graph_builder.add_node("call_llm", with_config(call_llm))
graph_builder.add_node("exec_sql", with_config(exec_sql))

graph_builder.add_edge(START, "init")
graph_builder.add_edge("init", "prompt_gen")
graph_builder.add_edge("prompt_gen", "call_llm")
graph_builder.add_edge("call_llm", "exec_sql")
graph_builder.add_edge("exec_sql", END)
graph = graph_builder.compile()

from sql_with_llms.main import create_graph
g.get_graph().draw_png()

Input class

The input and output are these simple dataclasses.

@dataclass
class Input:
    """User provides the connection
    details and the question"""

    question: str

@dataclass
class Output:
    """SQL result and
    LLM explanation"""

    sql: str
    result: str

State class

This the state passed between the inner. The first and last one will receive/return the Input/Output respectively.

class Message(TypedDict):
    """Message to pass to litellm"""

    role: Literal["user", "system"]
    content: str


@dataclass
class State:
    question: Optional[str] = None
    messages: list[Message] = field(default_factory=list)
    sql: Optional[str] = None

The init node function

This node consumes the input converting the something of shape Input into a State. The next node will be prompt generation, so we will be save the question.

def init(
    initial: Input,
) -> State:
    """Initializes the state"""
    return State(
        question=initial.question,
    )

Global configuration class

The nodes beyond the initial one will require to have a bit more information that won’t change (not considered state). We will provide this as a seconds argument and bind it with functools.partial.

class SQLGenConfig(BaseModel):
    db_url: str = Field(description="DB connection string")
    engine: Engine = Field(description="DB connection")
    db: SQLDatabase = Field(description="Basic schema info")
    system_message_tpl: str = Field(
        description=r"Templated sys msg {}", repr=False
    )
    llm: Dict[str, Union[str, Dict[str, str], int, BaseModel]]
    structured: bool = Field(description="Enable/disable JSON Schema")
    extra_context: Dict[str, str] = Field(default_factory=dict)
    # ...

Prompt generation function node

def prompt_gen(state: State, sql_gen_config: SQLGenConfig):
    """Formats the prompt"""
    system_message_content = sql_gen_config.system_message_tpl.format(
        dialect=sql_gen_config.db.dialect,
        top_k=10,
        table_info=sql_gen_config.db.get_table_info(),
        extra_context=sql_gen_config.extra_context,
    )
    state.messages.extend(
        [
            {
                "role": "system",
                "content": system_message_content,
            },
            {"role": "user", "content": state.question},
        ]
    )
    return state

LLM calling function node

def call_llm(state: State, sql_gen_config: SQLGenConfig) -> State:
    response_format = SQLOutput if sql_gen_config.structured else None
    response = litellm.completion(
        messages=state.messages,
        response_format=response_format,
        **sql_gen_config.llm,  # model here
    )
    if response_format is not None:
        state.sql = SQLOutput.model_validate_json(
            response.choices[0].message.content
        ).sql
    else:
        state.sql = response.choices[0].message.content
    logger.info(
        f"Generated SQL: {sql_gen_config.structured=} {state.sql=}"
    )
    return state

SQL Execution function node

def exec_sql(state: State, sql_gen_config: SQLGenConfig) -> Output:
    logger.info(f"Executing SQL {state=}")
    with sql_gen_config.engine.connect() as conn:
        result = conn.execute(text(state.sql))
        try:
            results = str(result.fetchall())
        except Exception as error:
            results = str(error)

    assert state.sql is not None
    return Output(sql=state.sql, result=results)

Running the code

In order to try the pipeline, there’s a small CLI that can be called like this:

git clone https://github.com/D3f0/pycon-sql-llm.git
uv sync
uv run -m sql_with_llms.main <config file>

Lessons learned

Tables with a high number of columns can make the context larger
- RAG at the column level is a common technique to improve efficiency and accuracy.

SQL manipulation at the abstract syntax tree level (sqlglot)
- Finding dangerous operations (DML)
- Value substitution

Lessons learned (cont.)

Please more context!
- Adding examples, but not too many, or only the relevant ones 🤔

Dynamic context
- date based
- external resources
- AI tools

Lessons learned (cont.)

Function nodes
- Custom modifications
- Security (Python on WASM)

Make nodes Pydantic objects (__call__)
- You can define the full pipeline in YAML
- You can put the pipeline execution in an API

Closing words

Agentics is an OSS frameworks for writing agents created at IBM Research
- Example of text2sql use case

Thank you & Questions

nahuel.defosse@ibm.com

💬 🤖 Asking questions to your database with LLMs

About myself

Tomorrow

Follow along (or at 🏡)

Agenda

Pipeline Overview

DB Inspection

Public datasets used in text to SQL

BIRD

BIRD mini-dev

Downloading BIRD databases

Picking the example database california_schools

ER of california_schools

Creating the Engine

Getting one simple question

Getting a simple question and query

Execute the query

Convert natural language questions into SQL

Coding models

Prompts for SQL generation

Getting the schema for the prompt

Prompts

The messages that constitute the prompt

The messages that constitute the prompt

🔎 the system message

Calling the LLM with the prompt

Using litellm

Structured output

Attributes of output object

LLM generated SQL vs dataset query

Running again with values

Create a workflow

Chaining generation and execution

Graph creation

Input class

State class

The init node function

Global configuration class

Prompt generation function node

LLM calling function node

SQL Execution function node

Running the code

Lessons learned

Lessons learned

Lessons learned (cont.)

Lessons learned (cont.)

Closing words

Thank you & Questions

Picking the example database `california_schools`

ER of `california_schools`

Creating the `Engine`

Getting a `simple` question and query

🔎 the `system` message

Attributes of `output` object
